Filtro emi de la CA

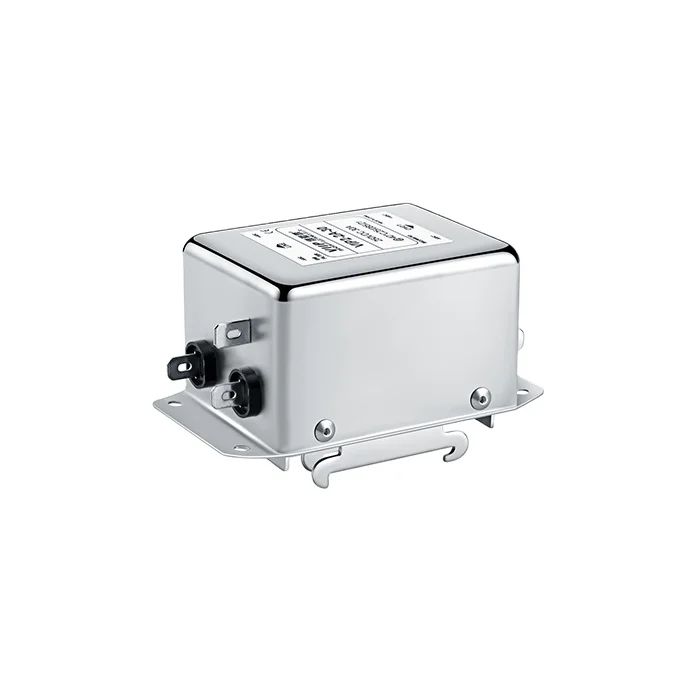

110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

Todas Las Categorías

Anillos de la ferrita alrededor de los cables

Broche en la obstrucción de la ferrita

Base de ferrita plana

Contacta con nosotros

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contacta ahora

110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

Nombre De La Marca:	VIIP
Número De Modelo:	VIP3-41A
Cuota De Producción:	1 por ciento
Precio:	5USD
Detalles Del Embalaje:	333318
Condiciones De Pago:	T/t, unión occidental

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

CE TUV UL ROHS REACH

Impedancia de entrada:

MINUTO 500VDC/100MOHM

Voltaje nominal:

110/250 VCA

Corriente nominal:

0.5A-800A

Tipo:

Filtro EMC

Pérdida de inserción:

60dB-90dB

Certificación:

CE ROHS,CE CQC,UL.TUL

Capacidad de la fuente:

2000 PC en el plazo de 10-15 días

Resaltar:

Low Pass Transfer Function AC EMI Filter

Compact Structure EMI Filter

High Insertion Loss EMC Filter

Descripción del producto

110V 250V Input AC EMI Filter For Building Automation TUV 20A

Input AC EMI Filter For Building Automation Print Machine Hardware Equipment

Quick Detail

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Item: Low Pass EMI Filter
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Temperature Range: 25 / 085 / 21
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certificate: UL TUV ISO9001 CE ROHS

Description

Suitable for three phase three line power supply. Compact structure, simple and time-saving installation, specially suitable for applications with limited space, highly cost effective.

Specifications

Applications

Widely used in various electrical units with connection style, such as print machine, packing machine, textile equipment, industry air conditioner, UPS, medical equipment, etc.

Our Advantages

(1) Sales Network

Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment

The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service

Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture

The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements.

Las etiquetas:
